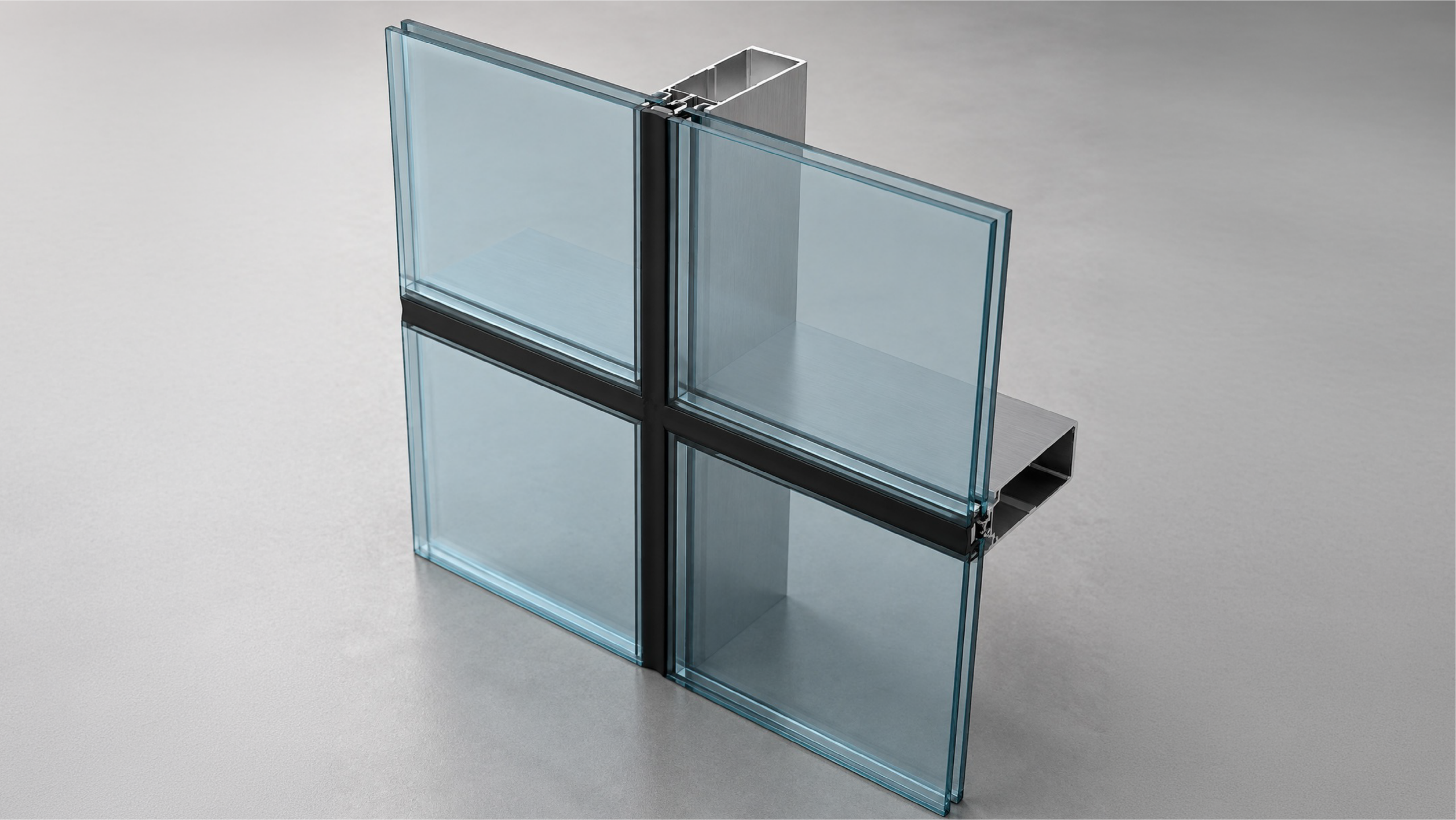

Structural Stick System Curtainwall

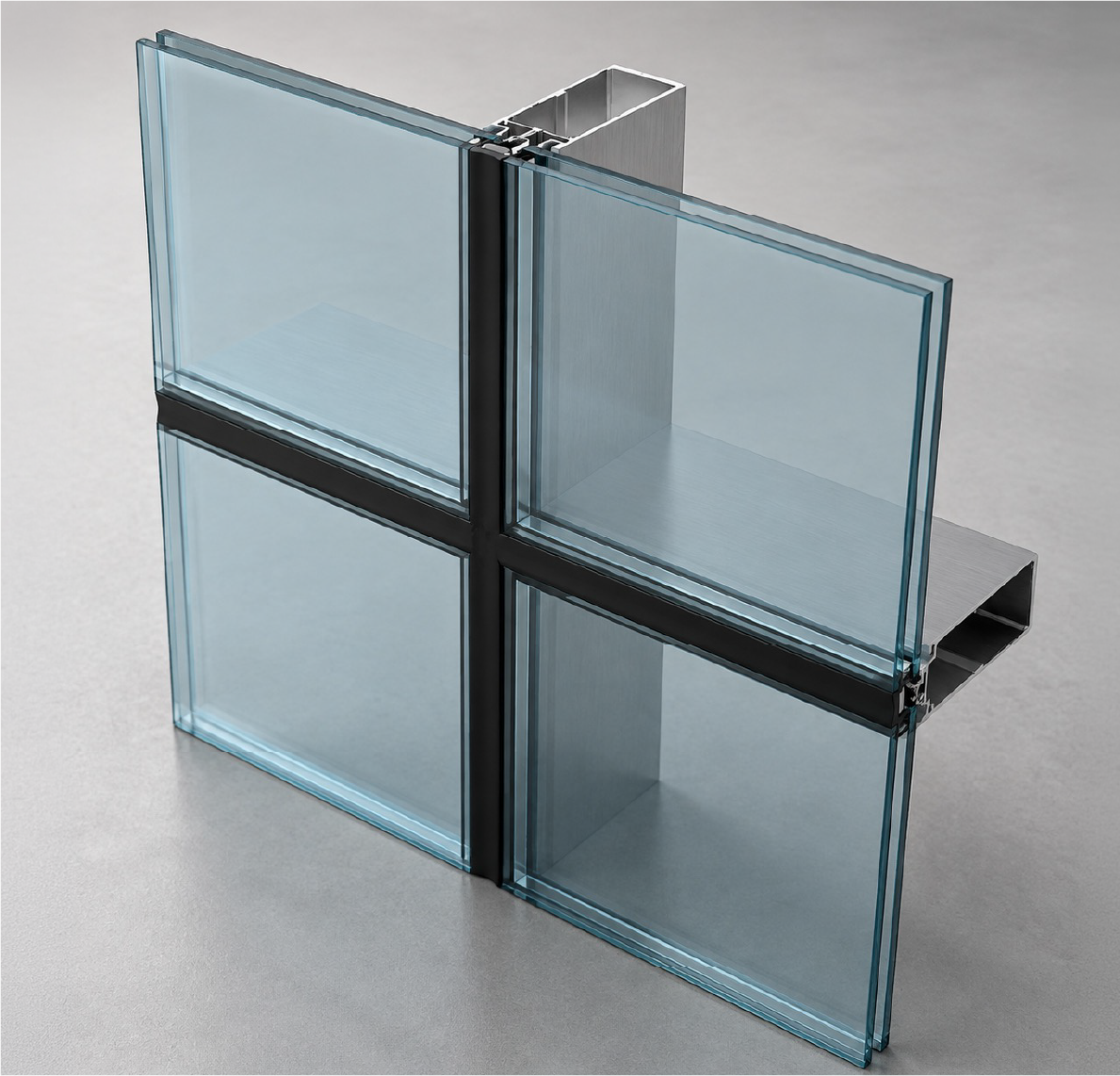

A field-assembled mullion and transom grid, structurally glazed to conceal the retention system.
The double-glazed assembly is held by a structural silicone joint rather than a cap — the mullion and transom grid is erected and glazed on site, with the retention system concealed behind a clean exterior joint.
System Reading
- 50 mm mullion face — Defines the primary vertical grid and captures glazing on both sides.
- Structural glazing joint — An 18 mm central joint coordinates silicone, backing gasket, and clamp block.
- Double-glazed units — A 6/22/6 mm build-up gives 34 mm overall thickness.
- Continuous weather seal — Rubber gaskets and structural silicone form the perimeter sealing strategy.

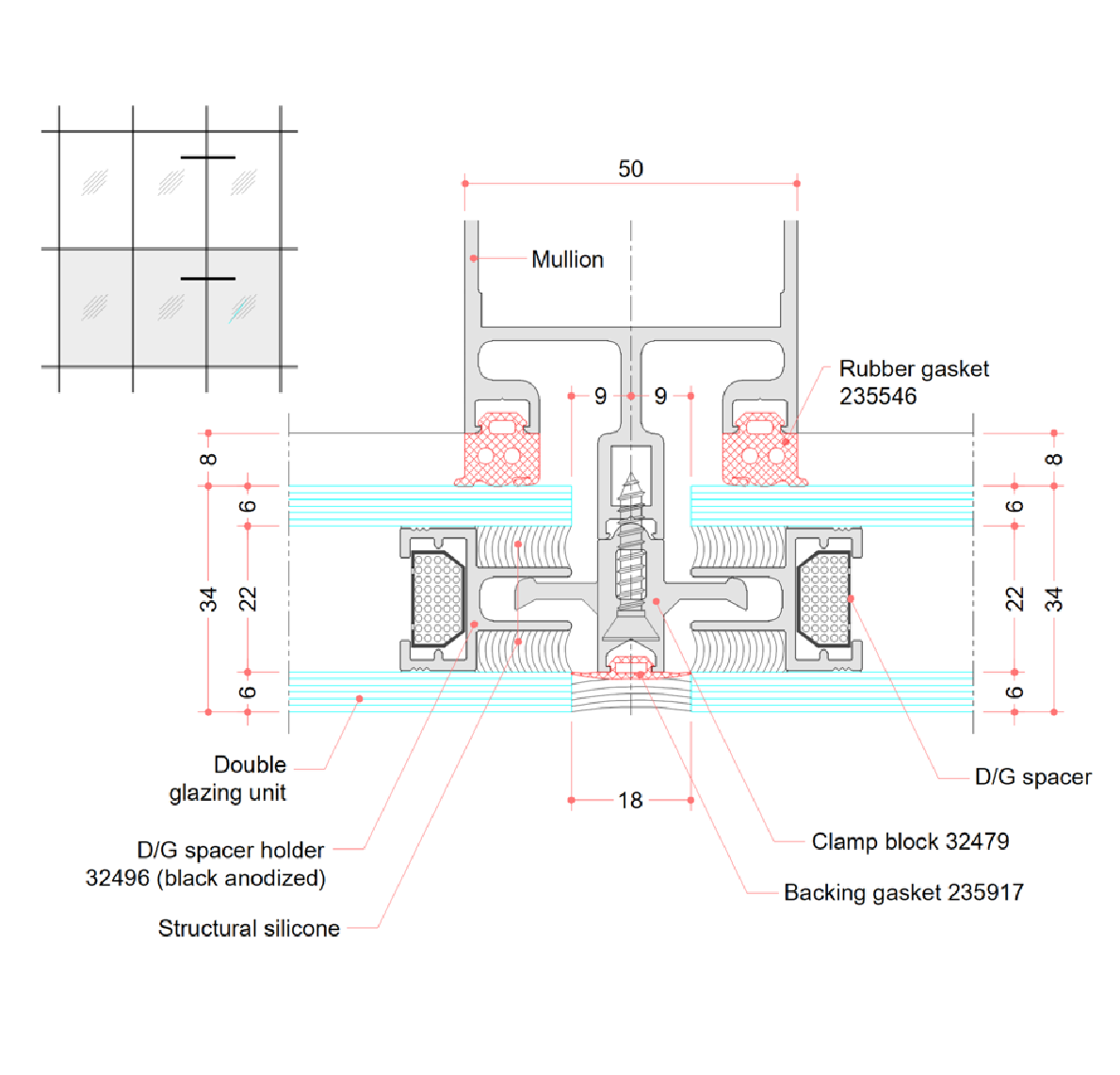

Key Dimensions — Mullion Section
The horizontal mullion coordinates two 34 mm glazing units.
Assembly principle:
Mirror-symmetrical glazing retention around the mullion centreline.

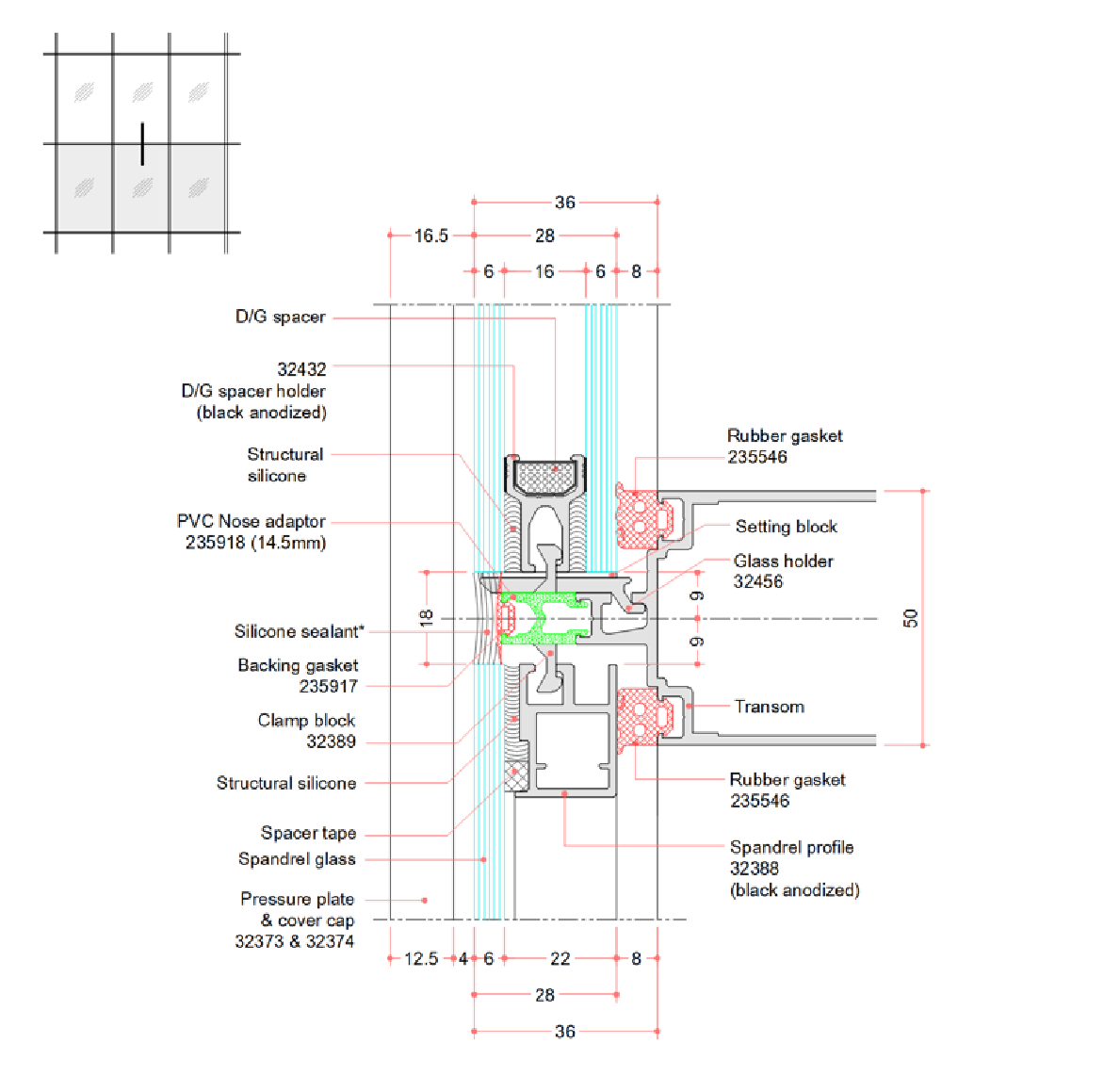

Functional Stack — Transom Section
The vertical transom separates vision glass from the spandrel.
- Vision IGU — D/G spacer holder, structural silicone, and PVC nose adaptor.
- Transom support — 50 mm profile zone with setting block and glass holder.
- Spandrel build-up — Black-anodised spandrel profile, spacer tape, and pressure plate.
- External closure — Silicone sealant and cover-cap interface complete the exposed edge.
Structural Interfaces
Four interfaces control support, movement, and weather performance across the joint.
- Primary gasket — Rubber gasket 235546 provides continuous compression at the aluminium-to-glass interface.
- Structural bond — Structural silicone transfers design actions while maintaining a clean exterior appearance.
- Joint backing — Backing gasket 235917 controls silicone depth and supports consistent joint geometry.
- Mechanical retention — Clamp blocks and glass holders coordinate the glazing unit with the mullion and transom profiles.
The sectioned interfaces are reviewed as one continuous façade joint — not as isolated accessories.
