Conventional Curtainwall with Fully Cap Cover

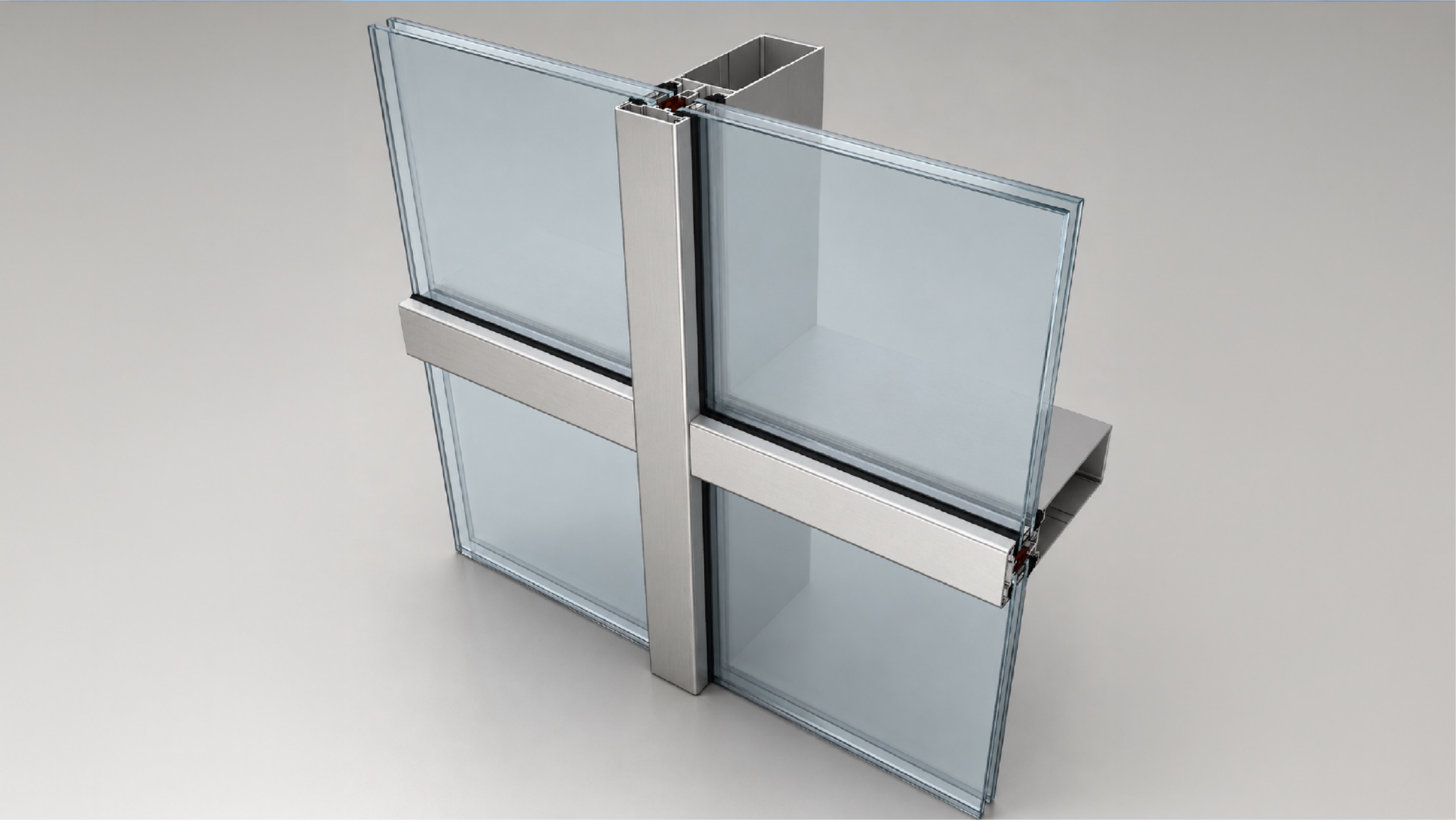

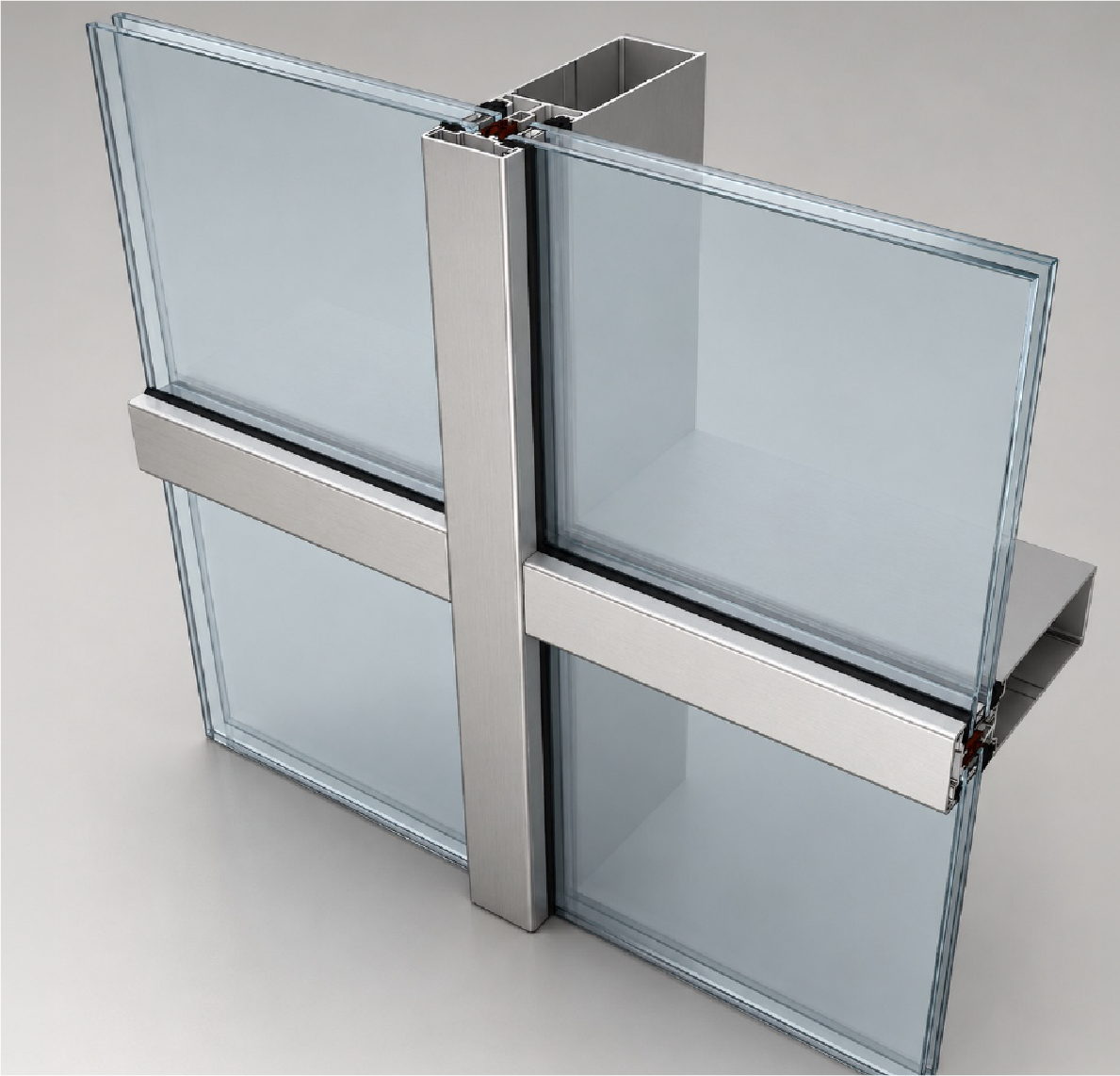

The 3D assembly shows the capped mullion and transom grid that defines this system: continuous vertical cover caps
expressing the primary grid, horizontal pressure plates mechanically retaining the glazing, and insulated glass units
seated on continuous rubber gaskets throughout.
System Reading
- Mullion cover cap — Continuous vertical exterior cap expresses the primary grid.
- Transom pressure plate — Horizontal cap mechanically retains the glazing at the transom.
- Insulated glazing — Blue-tinted double glazing seats against continuous rubber gaskets.
- Concealed fastening — Central fasteners clamp the pressure plate back to the carrier profile.

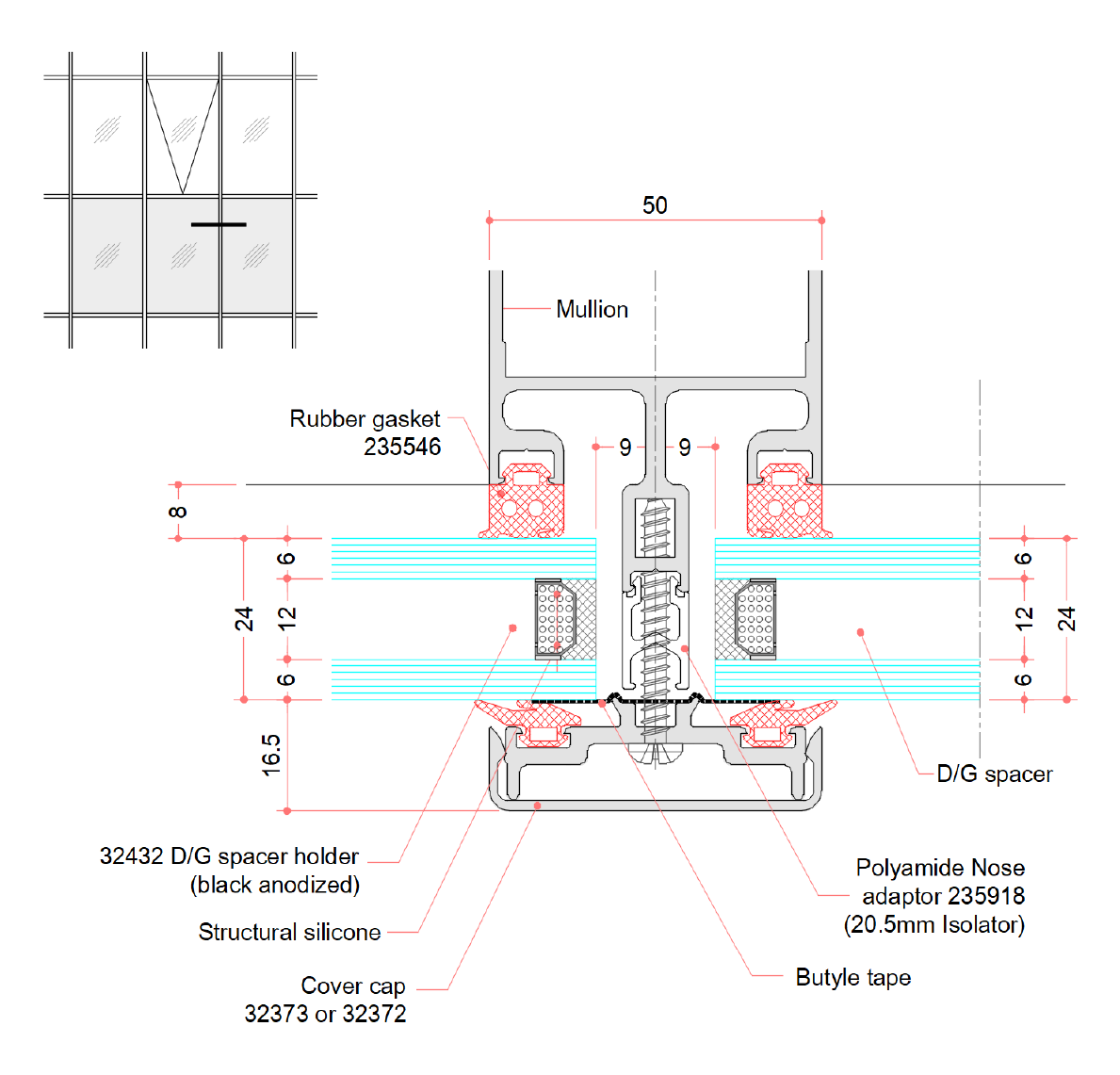

Key Set-Out — Mullion Section
The mullion section retains two 24 mm insulated glazing units.
Exterior closure:
Cover cap 32373 or 32372 closes the pressure-plate assembly.

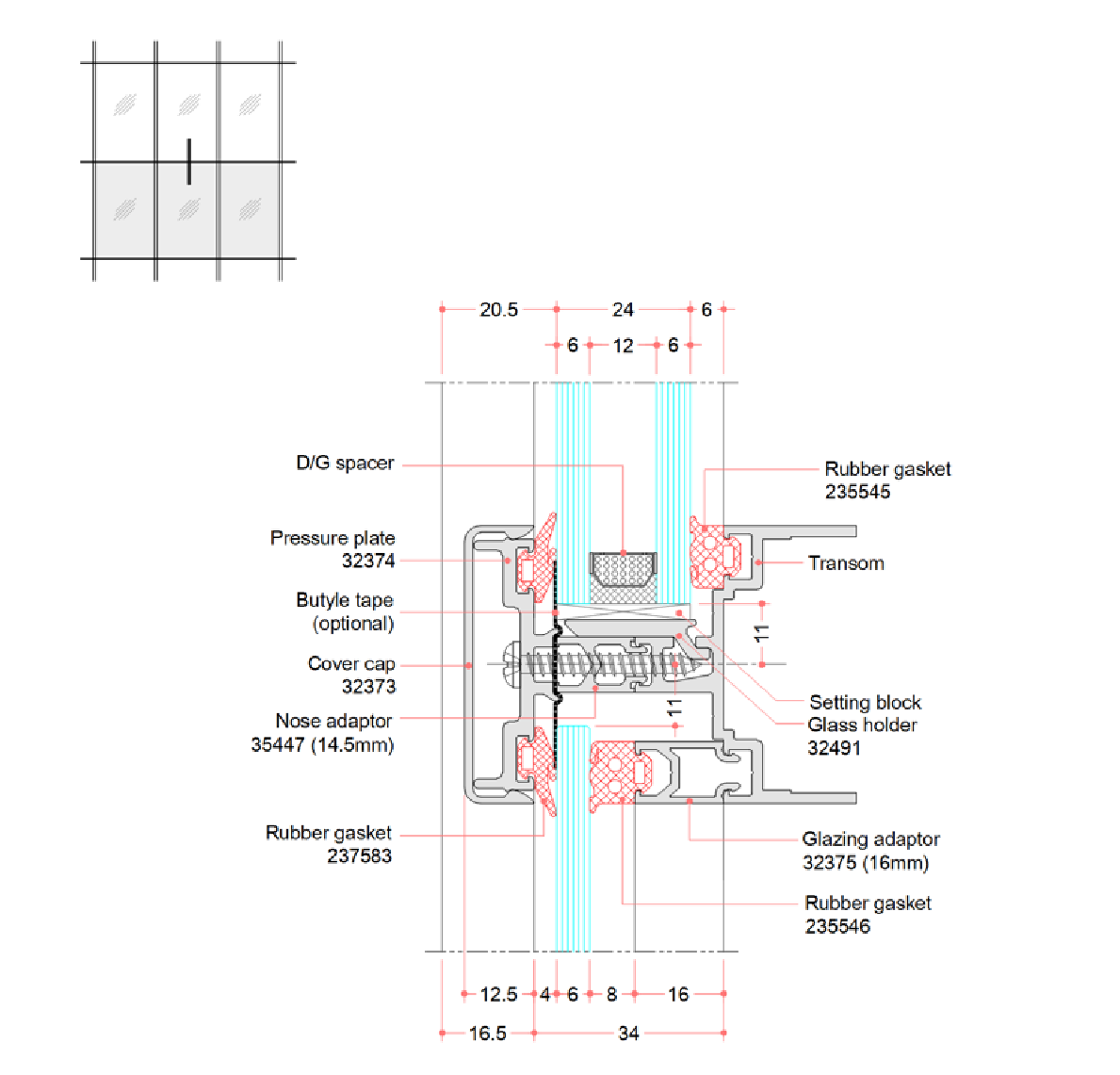

Load + Seal Path — Transom Section
The transom section supports the same standard 24 mm IGU.
24 mm IGU —
6 mm glass + 12 mm cavity + 6 mm glass.
Setting block —
Carries glass dead load into the transom.
Glass holder (32491) —
Locates and retains the glazing assembly.
Pressure plate (32374) —
Clamps the insulated glazing mechanically.
Gaskets (235545 / 237583 / 235546) —
Provide continuous compression seals.
Standardised Design
One 24 mm IGU build-up applies throughout the façade. Both the mullion and transom details use the identical 6 mm glass / 12 mm cavity / 6 mm glass configuration — adaptors, gaskets, setting blocks, and pressure plates are matched consistently to this glass thickness across the whole system.
